外キャップ
MSCシリーズ
鋼管・配管の外径に合わせてはめ込む保護キャップとなります。
鋼管(SGP)、ポリエチレン管(PE二層管、PEガス管、PE水道管)、ステンレス管、塩ビ管(VP管、VU管、電線共同溝(CCBOX))等、幅広い用途にお使いいただけます。
輸送や保管時の異物やゴミの混入を防ぎ、管末端の保護材としてもご利用いただけます。
外キャップ MSCシリーズ PE

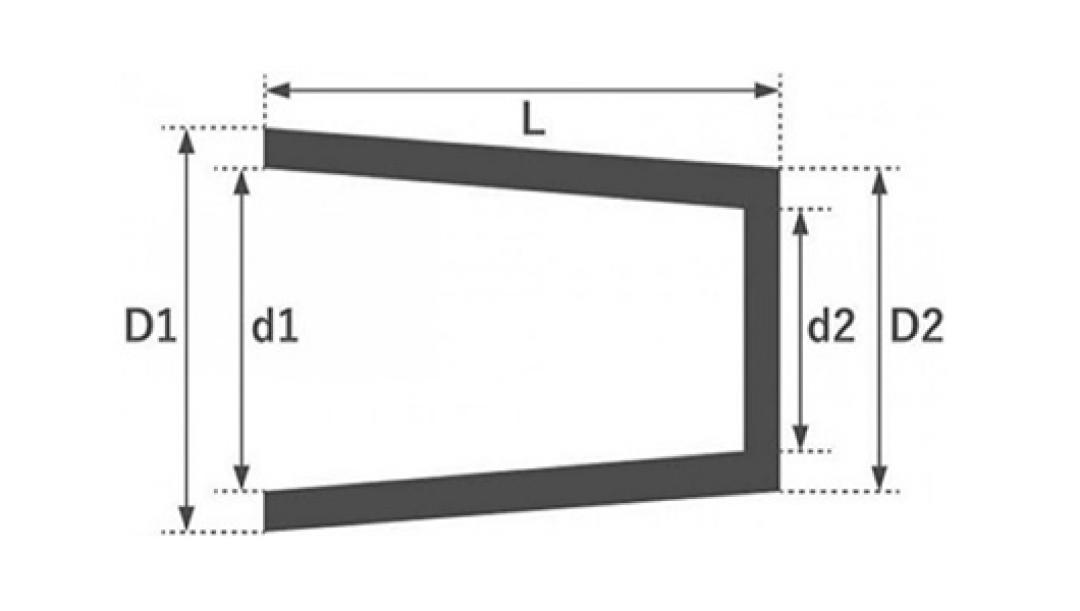

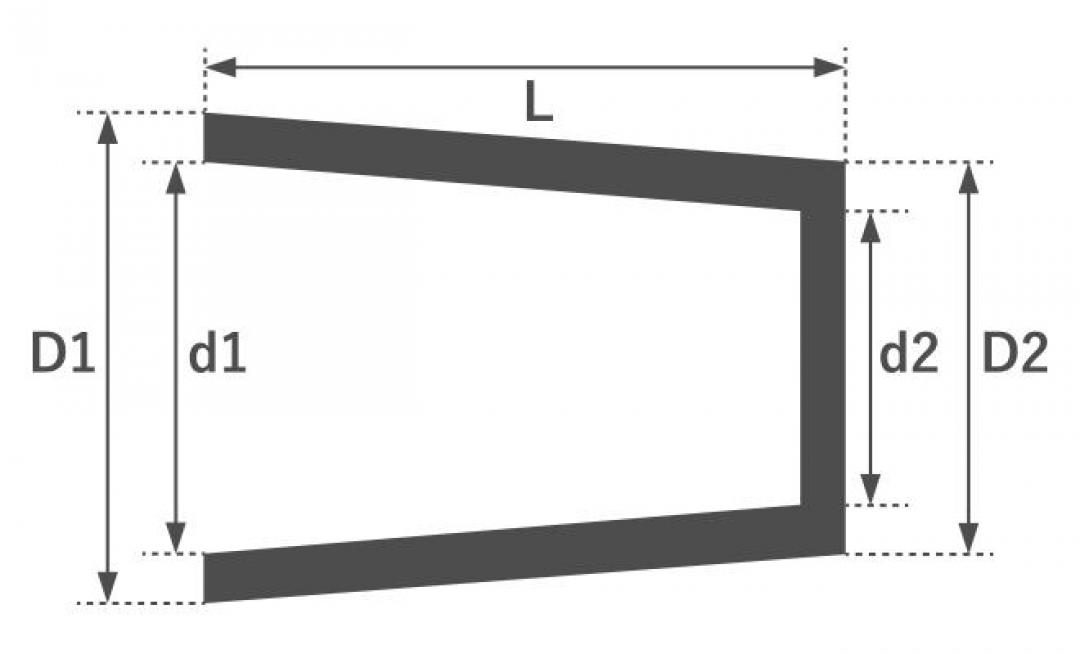

| JIS | インチ | パイプ外径 | D1 | D2 | d1 | d2 | L | 色 | ケース入り数 | 備考 |
|---|---|---|---|---|---|---|---|---|---|---|
| 6A | 1/8 | 10.5 | 11.8 | 11.2 | 10.6 | 10.0 | 20.0 | 黄 | 24,000 | |
| 12.7 | 14.0 | 13.5 | 12.8 | 12.3 | 20.0 | 黄 | 18,000 | |||
| 8A | 1/4 | 13.8 | 15.9 | 15.2 | 13.9 | 13.2 | 20.0 | 黄 | 15,000 | |
| 16.0 | 17.7 | 17.3 | 16.1 | 15.7 | 20.0 | 黄 | 12,000 | |||
| 10A | 3/8 | 17.3 | 19.4 | 18.8 | 17.4 | 16.8 | 20.0 | 黄 | 10,000 | |
| 19.0 | 21.1 | 20.6 | 19.1 | 18.6 | 30.0 | 黄 | 6,000 | |||
| 21.3 | 23.4 | 22.8 | 21.4 | 20.8 | 30.0 | 黄 | 4,800 | |||
| 15A | 1/2 | 21.7 | 23.8 | 23.2 | 21.8 | 21.2 | 30.0 | 黄 | 4,800 | |
| 22.2 | 24.3 | 23.8 | 22.3 | 21.8 | 30.0 | 黄 | 4,600 | |||
| 25.4 | 27.5 | 27.0 | 25.5 | 25.0 | 30.0 | 黄 | 3,500 | |||
| 26.7 | 28.8 | 28.2 | 26.8 | 26.2 | 30.0 | 黄 | 3,300 | |||
| 20A | 3/4 | 27.2 | 29.3 | 28.9 | 27.3 | 26.9 | 30.0 | 黄 | 3,300 | |
| 30.0 | 32.1 | 31.6 | 30.1 | 29.6 | 30.0 | 黄 | 2,500 | |||
| 32.0 | 34.1 | 33.6 | 32.1 | 31.6 | 30.0 | 黄 | 2,400 | |||
| 33.4 | 35.5 | 35.2 | 33.5 | 33.2 | 30.0 | 黄 | 2,200 | |||
| 25A | 1 | 34.0 | 36.1 | 35.6 | 34.1 | 33.6 | 30.0 | 黄 | 2,200 | |
| 38.0 | 40.1 | 39.8 | 38.1 | 37.8 | 30.0 | 黄 | 1,800 | |||
| 40.0 | 48.1 | 41.5 | 40.1 | 39.5 | 30.0 | 黄 | 1,700 | |||
| 42.2 | 44.3 | 43.6 | 42.3 | 41.6 | 30.0 | 黄 | 1,500 | |||
| 32A | 1 1/4 | 42.7 | 44.8 | 44.4 | 42.8 | 42.4 | 30.0 | 黄 | 1,500 | |
| 45.0 | 47.1 | 46.7 | 45.1 | 44.7 | 30.0 | 黄 | 1,300 | |||
| 48.3 | 50.4 | 50.0 | 48.4 | 48.0 | 30.0 | 黄 | 1,200 | |||
| 40A | 1 1/2 | 48.6 | 50.7 | 50.2 | 48.7 | 48.2 | 30.0 | 黄 | 1,200 | |
| 50.8 | 52.9 | 52.0 | 50.9 | 50.0 | 30.0 | 黄 | 1,050 | |||
| 54.0 | 56.1 | 55.4 | 54.1 | 53.4 | 30.0 | 黄 | 920 | |||
| 57.0 | 59.2 | 58.7 | 57.2 | 56.7 | 30.0 | 黄 | 850 | |||
| 60.3 | 62.9 | 61.6 | 60.5 | 59.2 | 45.0 | 黄 | 600 | |||
| 50A | 2 | 60.5 | 62.9 | 61.6 | 60.5 | 59.2 | 45.0 | 黄 | 600 | |
| 63.5 | 66.1 | 65.2 | 63.7 | 62.8 | 50.0 | 黄 | 450 | |||
| 65.0 | 67.6 | 65.8 | 65.2 | 63.4 | 50.0 | 黄 | 450 | |||
| 70.0 | 72.6 | 71.4 | 70.2 | 69.0 | 50.0 | 黄 | 460 | |||
| 73.0 | 75.6 | 74.8 | 73.2 | 72.4 | 50.0 | 黄 | 460 | |||
| 65A | 2 1/2 | 76.3 | 78.9 | 77.6 | 76.5 | 75.2 | 50.0 | 黄 | 400 | |
| 82.6 | 85.2 | 83.2 | 82.8 | 80.8 | 50.0 | 黄 | 350 | |||
| 88.9 | 91.5 | 90.0 | 89.1 | 87.6 | 50.0 | 黄 | 300 | |||
| 80A | 3 | 89.1 | 91.5 | 90.0 | 89.1 | 87.6 | 50.0 | 黄 | 300 | |
| 90A | 3 1/2 | 101.6 | 104.8 | 103.6 | 101.8 | 100.6 | 50.0 | 黄 | 250 | |
| 108.0 | 114.2 | 110.0 | 108.2 | 107.0 | 50.0 | 黄 | 200 | |||
| 100A | 4 | 114.3 | 117.5 | 116.8 | 114.5 | 113.8 | 50.0 | 黄 | 210 | |
| 127.0 | 131.2 | 129.0 | 127.2 | 125.0 | 50.0 | 黄 | 165 | |||
| 133.0 | 137.2 | 135.5 | 133.2 | 131.5 | 50.0 | 黄 | 150 | |||
| 125A | 5 | 139.8 | 143.0 | 139.8 | 140.0 | 137.8 | 50.0 | 黄 | 160 | |
| 141.3 | 144.5 | 141.0 | 141.5 | 138.0 | 50.0 | 黄 | 160 | |||
| 147.5 | 150.8 | 149.5 | 147.8 | 146.5 | 45.0 | 黄 | 160 | |||
| 152.4 | 156.6 | 155.0 | 152.6 | 151.0 | 50.0 | 黄 | 100 | |||
| 150A | 6 | 165.2 | 169.4 | 165.2 | 165.4 | 163.2 | 50.0 | 黄 | 100 | |
| 168.3 | 172.5 | 170.0 | 168.5 | 166.0 | 55.0 | 黄 | 110 | |||
| 185.0 | 189.2 | 187.0 | 185.2 | 183.0 | 40.0 | N | 100 | |||
| 175A | 7 | 190.7 | 195.0 | 193.0 | 191.0 | 189.0 | 60.0 | N | 128 | |
| 200A | 8 | 216.3 | 220.5 | 218.5 | 216.5 | 214.5 | 60.0 | N | 100 | |
| 219.1 | 223.3 | 221.0 | 219.3 | 217.0 | 70.0 | N | 84 | |||
| 250A | 10 | 267.4 | 273.6 | 271.0 | 267.6 | 265.0 | 70.0 | N | 50 | |
| 273.0 | 279.2 | 277.0 | 273.2 | 271.0 | 75.0 | N | 48 | |||
| 300A | 12 | 318.5 | 324.7 | 323.0 | 318.7 | 317.0 | 70.0 | N | 39 | |
| 323.8 | 330.0 | 327.0 | 324.0 | 321.0 | 75.0 | N | 35 | |||
| 350A | 14 | 355.6 | 362.8 | 361.0 | 355.8 | 354.0 | 75.0 | N | 30 | |
| 400A | 16 | 406.4 | 414.6 | 412.0 | 406.6 | 404.0 | 80.0 | N | 20 | |
| 450A | 18 | 457.2 | 464.5 | 461.0 | 460.9 | 455.0 | 124.5 | N | 10 | |
| 500A | 20 | 508.0 | 515.0 | 512.0 | 512.4 | 508.0 | 120.0 | N | 10 | |
| 550A | 22 | 558.8 | 568.0 | 567.0 | 564.8 | 559.5 | 127.0 | N | 10 | |
| 600A | 24 | 609.6 | 613.0 | 612.5 | 610.0 | 609.5 | 121.0 | N | 10 | |
| 650A | 26 | 660.4 | 667.9 | 666.1 | 663.8 | 660.9 | 130.0 | N | 10 | |
| 700A | 28 | 711.2 | 719.0 | 719.0 | 717.0 | 711.0 | 120.0 | N | 10 | |
| 750A | 30 | 762.0 | 765.0 | 766.5 | 763.0 | 762.5 | 135.0 | N | 10 | |
| 800A | 32 | 812.8 | 821.0 | 818.2 | 816.7 | 812.3 | 128.0 | N | 10 | |
| 850A | 34 | 863.6 | 873.0 | 869.0 | 871.0 | 865.0 | 120.0 | N | 10 | |
| 900A | 36 | 914.4 | 922.0 | 924.0 | 918.0 | 922.0 | 155.0 | N | 10 | |
| 1000A | 40 | 1016.0 | 1020.0 | 1018.5 | 1015.0 | 1013.5 | 130.0 | N | 10 |
PDFダウンロードはこちら
